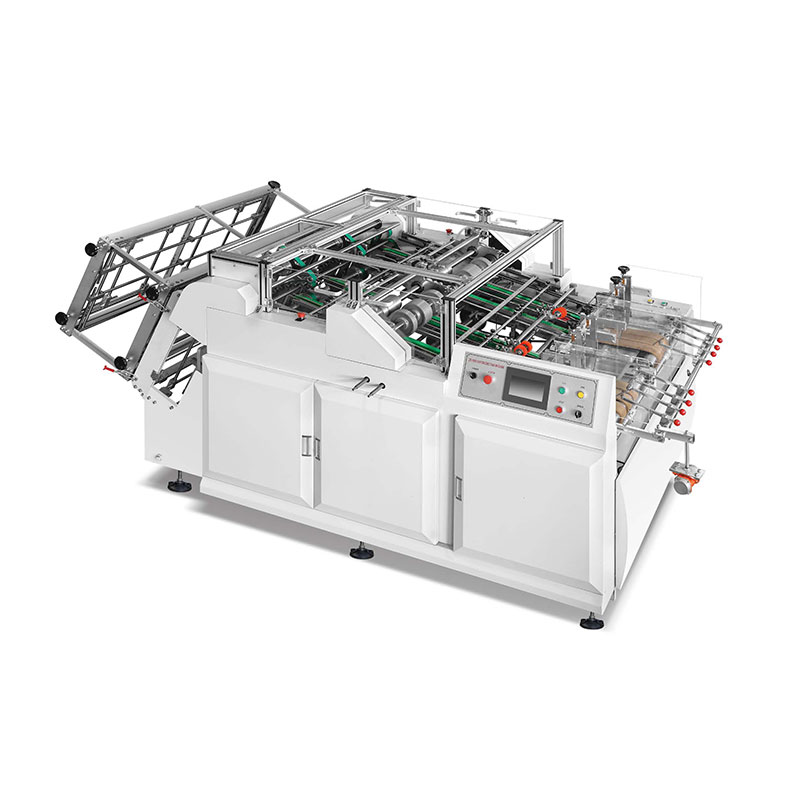

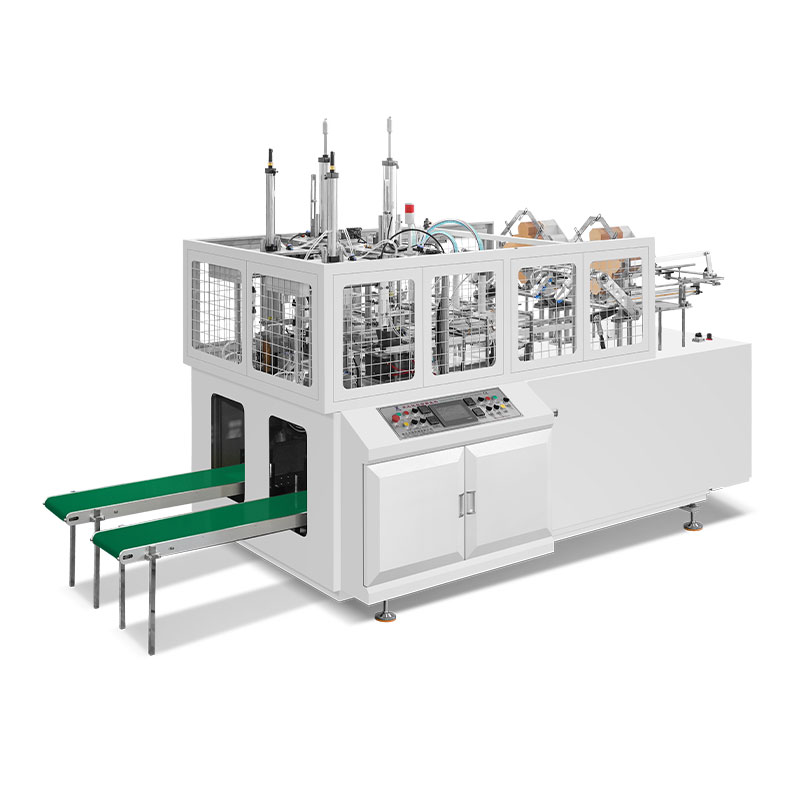

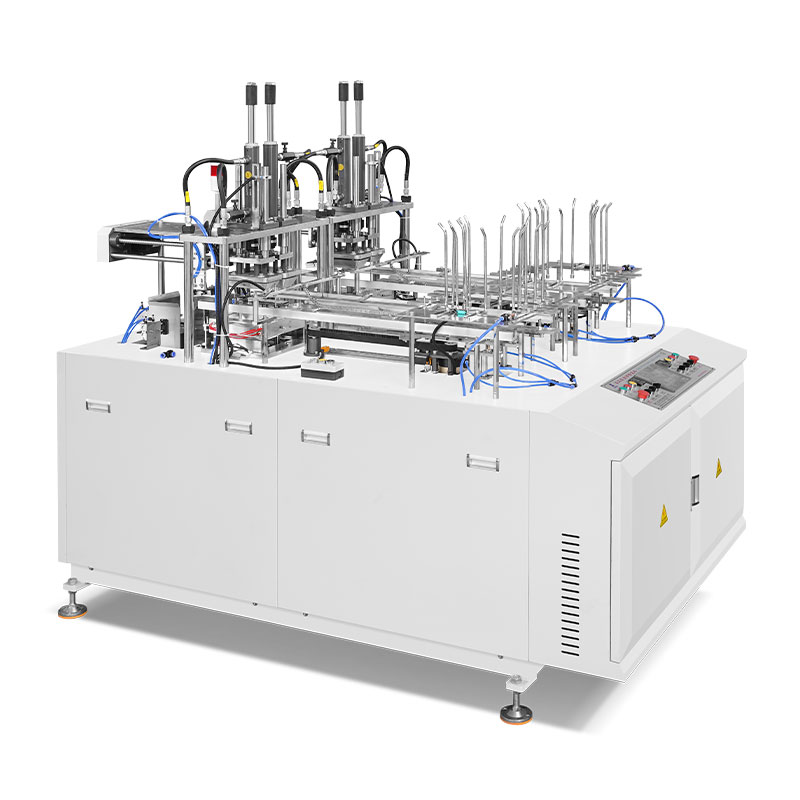

Carton Erecting Forming Machine

Features

  • Servo motor control the forming mold (press mold) (advanced, more accurate than mechanism cam control)
  • Using full servo system (4 servos in machine replace cam system)
  • Easy exchange molds to make different products, charging and adjusting time is very short.
  • PLC program control the whole line, available to make complicated boxes.
  • Automatic collection, stock, and count.
  • Human being designed control button and panel, more easy and safe runs by user.
  • PLC could save the adjusted parameter after you finish adjustment, it will help save time.

xx MAKE A QUOTE pdf PDF Datasheet
Product Detail
Machine Description

Carton Erecting Forming Machine is specially designed to produce a variety of food containers, such as hamburger boxes, hot dog trays, single piece boxes, Chinese takeaway boxes, French fry boxes, lunch boxes and meal boxes. Materials include cardboard, paper, paperboard and corrugated paper.



MACHINE VIDEO

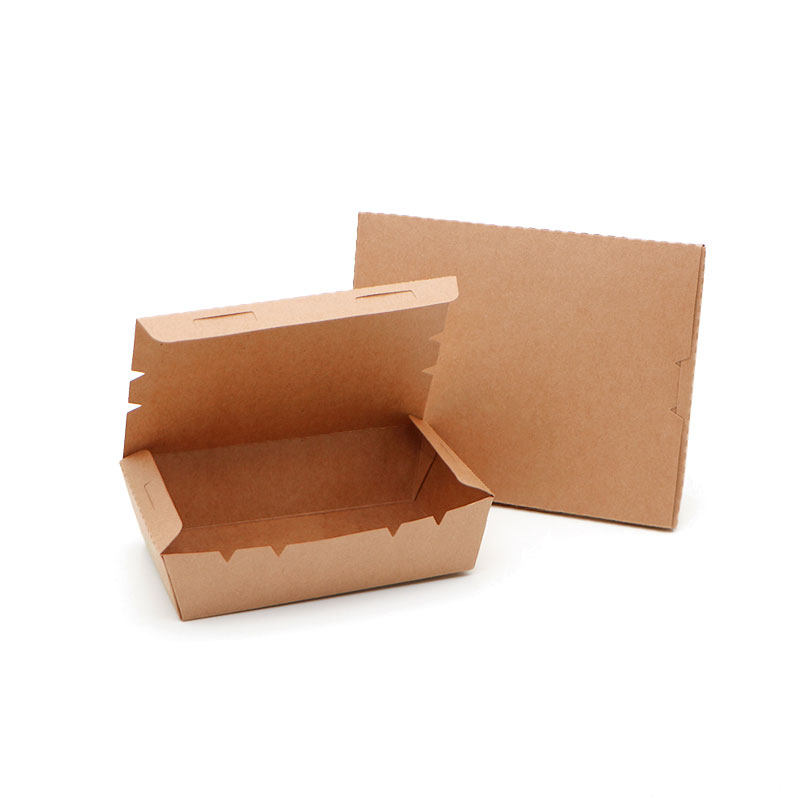

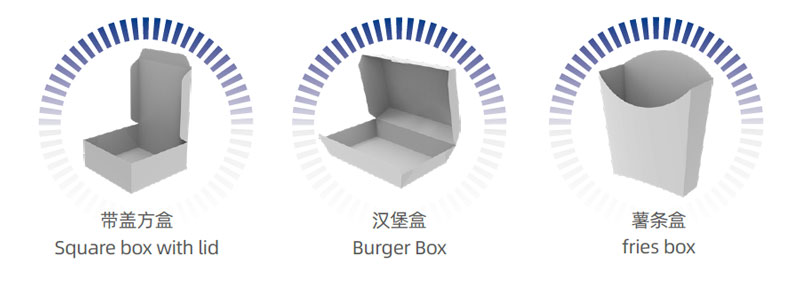

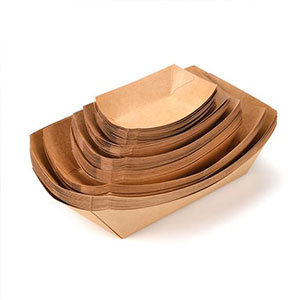

BASIC PAPER BOX SHAPE

TECHNICAL SPECIFICATION

Model

ZX-1600

Paper Weight

200-620g

Speed

60-160pcs/min(one station)

Welding Method

Water-Glue System Welding;

Available Material

200~620gsm board, paperboard, paper, corrugated cardboard, Fluted paper, etc.

Material Thickness

Max. 1.5mm

Paper Size:

L=Length: 100-450mm

W=Width: 100-550mm

H=Height: 15mm-320mm

Angle: 5~50 degrees

Paper Thickness

≤1.6mm

Paper Size

500*480

Machine Size (L*W*H)

3600*1850*1700mm

Power Source

3-phase, 380V, 50/60Hz

Voltage

380v/220v

Current

50hz

Total Power

5kw

Machine Weight

2000kg

Air Source

Compressed air at 6-10 bar needed

The product complies with the regulatory requirements and standards on CE conformity andtherefore carries the CE mark.

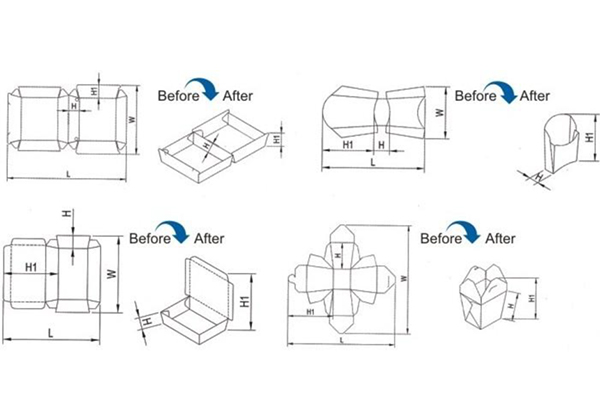

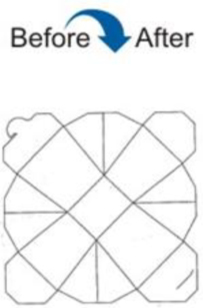

BOX TYPE

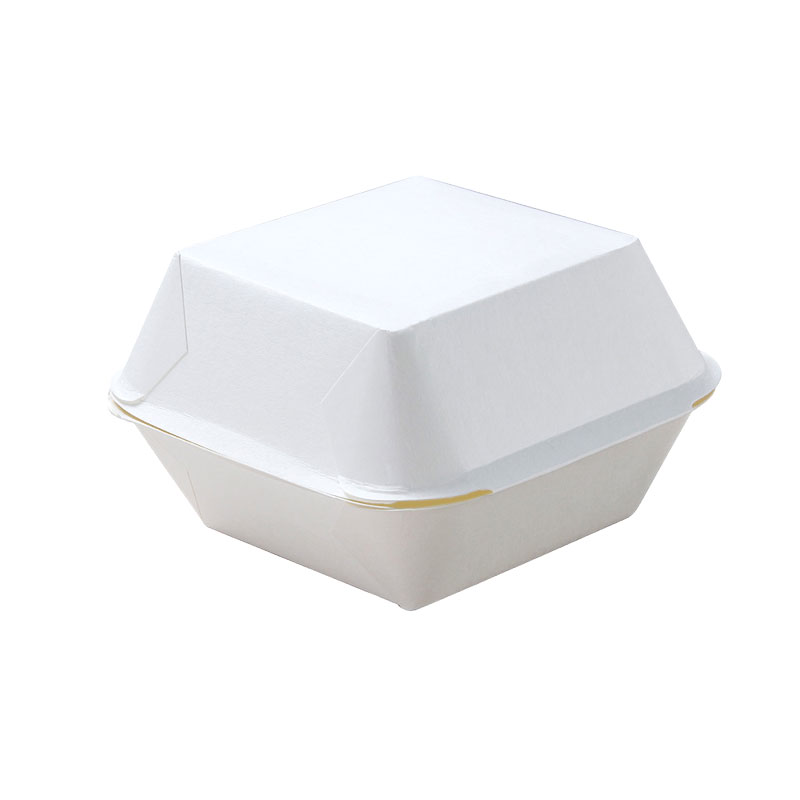

SAMPLE BOX





Machine Details

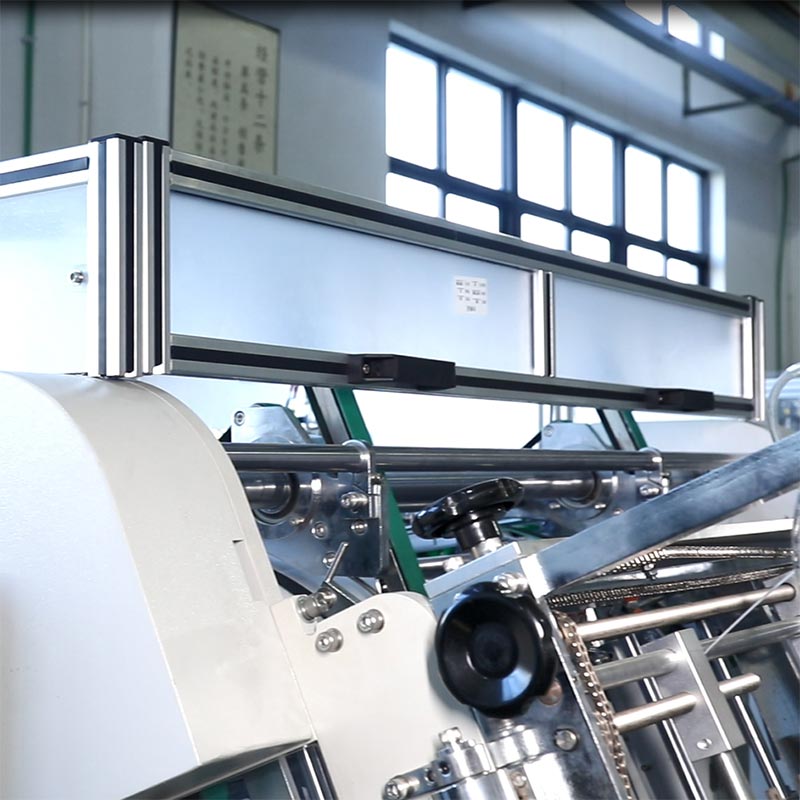

Thick Walls

Machine weight is exceed 2800kgs, machine runs stably at a high speed.

Cam Pushing System

Cam pusher design, reduce the wearing a lot.

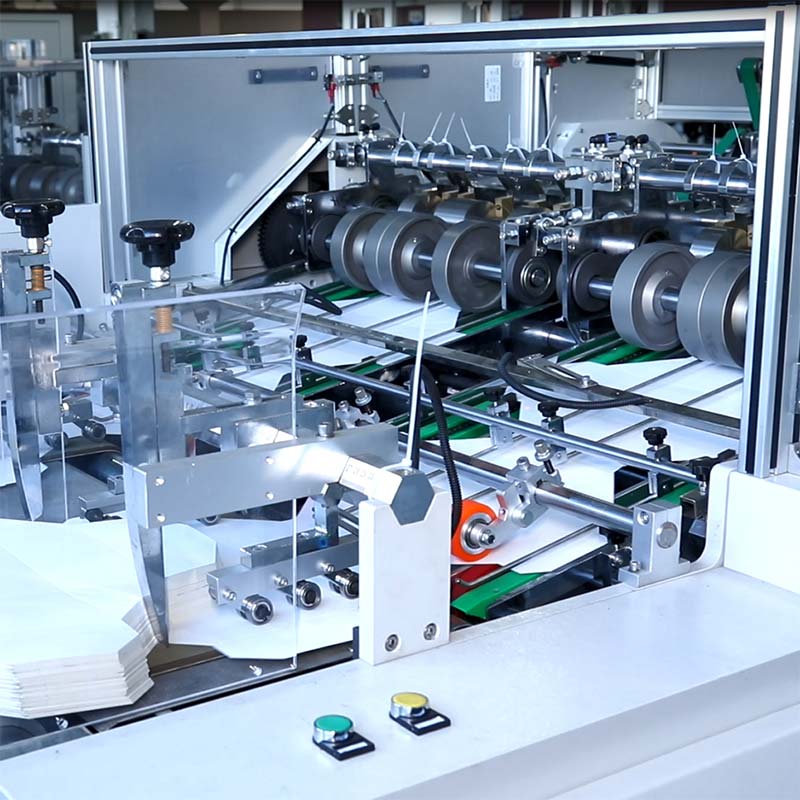

Belt Structure

Belt structure have features of low noise, easy maintenance, longer service life and high precision

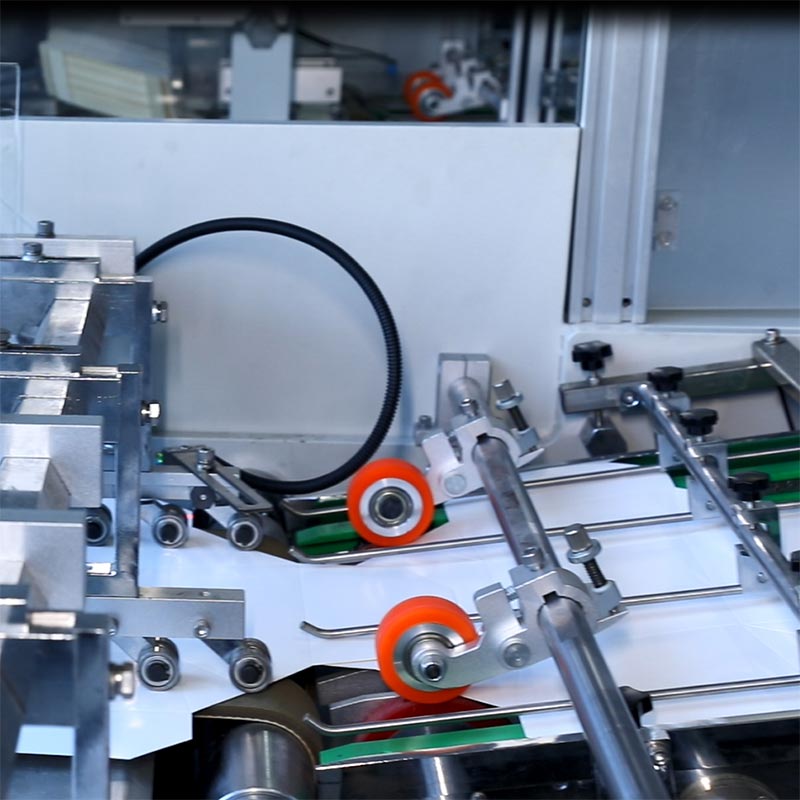

We are using same structure as the folder glue machine, the paper will be delivered more smoothly. And hard aluminium material, much better and use imported belt, the machine will stop if the machine doesn’t delivery paper or the machine is not in a correct way, we are also using servo motor for feeding.

At the beginning of paper feeding part, we install the vibrator, the quality of the output products will be increased when feeding precision is high, and it can make paper feed more smoothly.

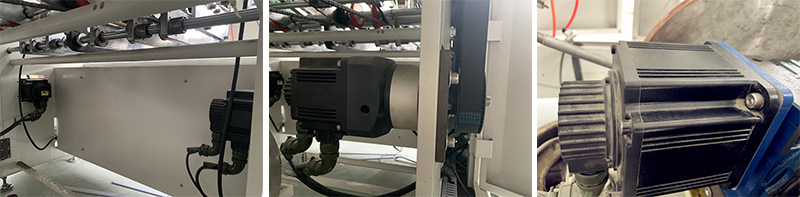

We are using 4 servo system - two servo motors for paper feeding, one servo motor for paper sending, one servo motor for molding. The structure is much easier and it has less damageable parts with lower maintenance cost, you could do the most adjustments by Touch Screen Program PLC. If you only run the single lane, you could turn off the second lane, they are independent.

Wheel Glue System – they are independent.

In the forming part, we have the lubrication system and use the two rails which can make the forming more stably and longer service life.

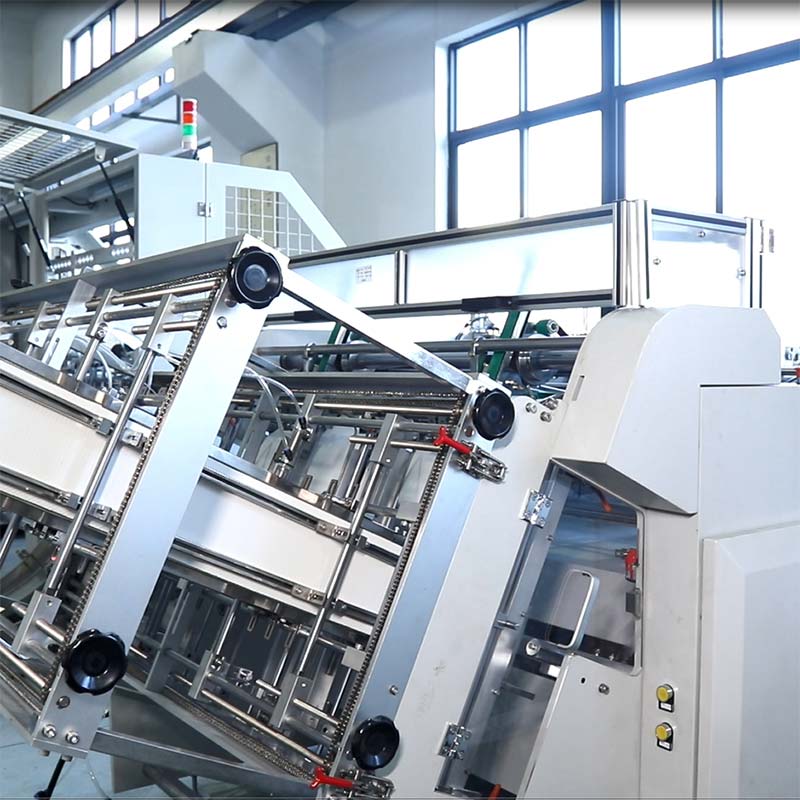

We improve this structure, you could do changes faster than others, the collection unit could be open when you change the molds.

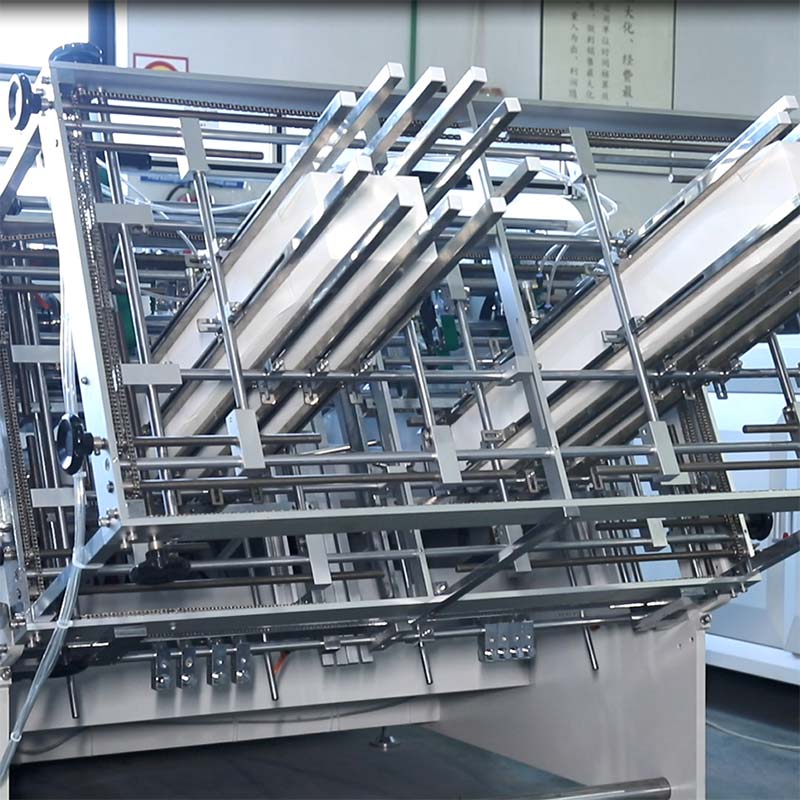

Two collection units are independent, you can move it smoothly.
